Oil Filter

The oil filter is located in the engine's lubrication system. It is positioned upstream of the oil pump and downstream of the engine parts requiring lubrication. The oil filter is used to filter out harmful impurities, ensuring clean oil is supplied to the crankshaft, connecting rod, camshaft, turbocharger, piston rings, and other parts. This aids in lubrication, cooling, and cleaning, thereby extending the life of these components. Tonghua boasts an advanced production line capable of producing 2000 spin-on filters per hour, suitable for all kinds of spin-installed oil and diesel filters. We select filter paper from international suppliers such as Ahlstrom Korea, HV, Awa from Japan, and Gessner from Germany. With high-quality materials and rigorous testing, our oil filters offer high filtration efficiency, low flow resistance, and long service life. Our production enhances engine performance, providing maximum protection to reduce wear and tear and maximize lifespan.

Our products are widely used in various cars, commercial vehicles, construction machinery, and light, medium, and heavy-duty trucks.

S3694660/S3696820

  • JB/T5088.1; ISO4548

  • Resistance at 70L/min flow rate: 20.91kPa

    Filtration efficiency: 20μm = 87.89%

    Dust holding capacity: 80.6g

  • 100,000 kilometers

S3694654

  • JB/T5088.1; ISO4548

  • Resistance at 53L/min flow rate: 15.81kPa

    Filtration efficiency: 20μm = 85.1%

    Dust holding capacity: 91.23g

  • 60,000 kilometers

S3696765

  • JB/T5088.1; ISO4548

  • Resistance at 4L/min flow rate: 7.65kPa

    Filtration efficiency: 4μm = 99.12%, 15μm = 100%

    Dust holding capacity: 75.35g

  • 100,000 kilometers

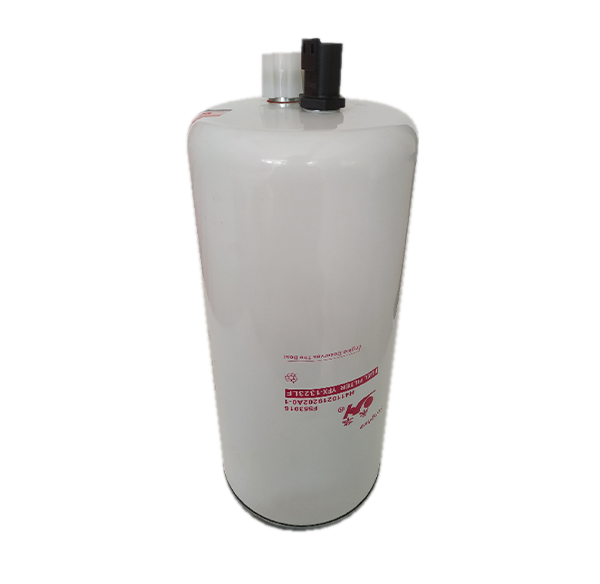

SH4110219202AO-1

  • JB/T5088.1; ISO4548

  • Resistance at 4L/min flow rate: 5.61kPa

    Filtration efficiency: 4μm = 98.91%, 15μm = 100%

    Dust holding capacity: 112.87g

  • 100,000 kilometers

SH4110210901AO

  • JB/T5239.1; ISO19438;ISO16332

  • Resistance at 5L/min flow rate: 6.32kPa

    Filtration efficiency: 25μm = 95.3%

    Dust holding capacity: 56.22g

    Oil-water separation efficiency: 99.5%

  • 60,000 kilometers

S3694652

  • JB/T5239.1; ISO19438;ISO16332

  • Resistance at 5L/min flow rate: 6.56kPa

    Filtration efficiency: 10μm = 97.63%

    Dust holding capacity: 50.67g

    Oil-water separation efficiency: 95.1%

  • 100,000 kilometers
